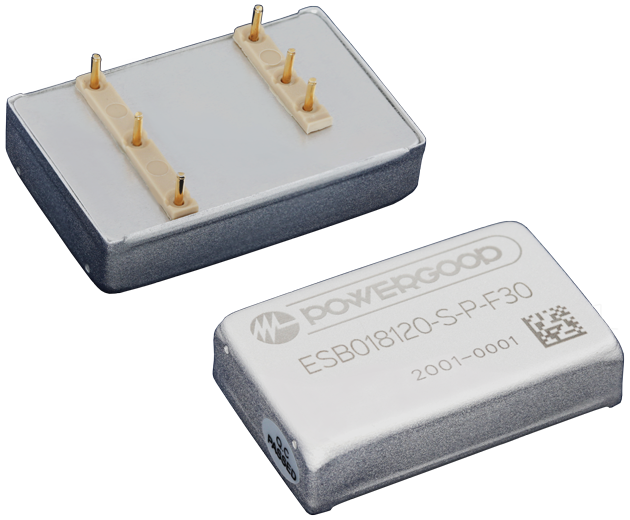

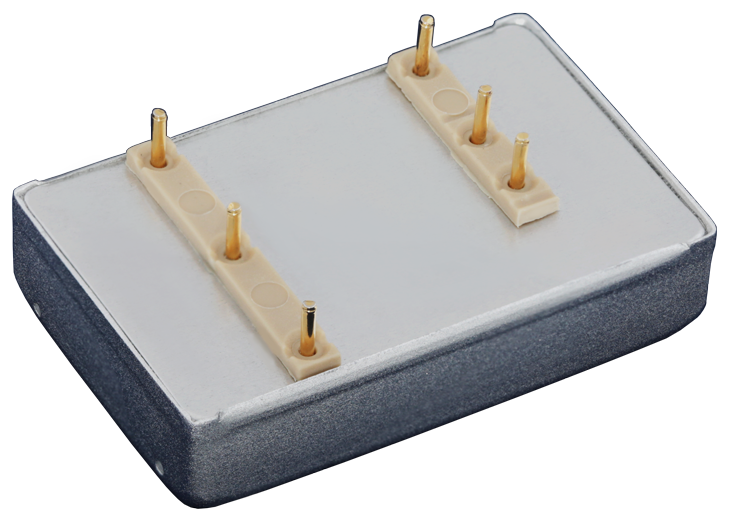

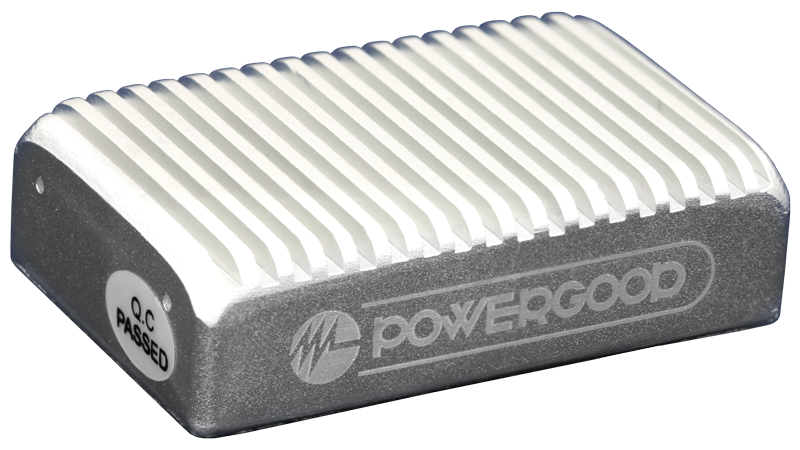

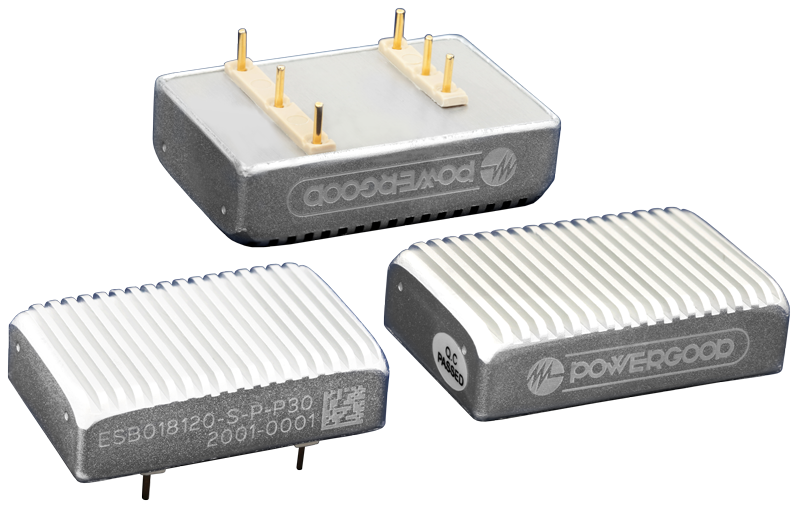

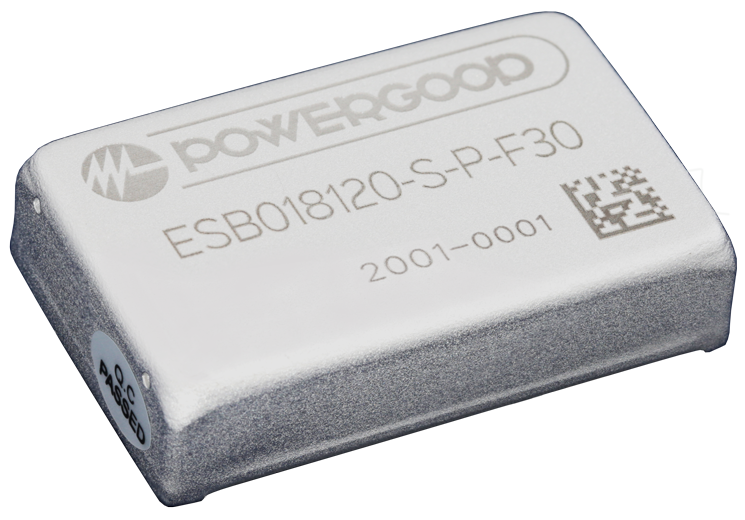

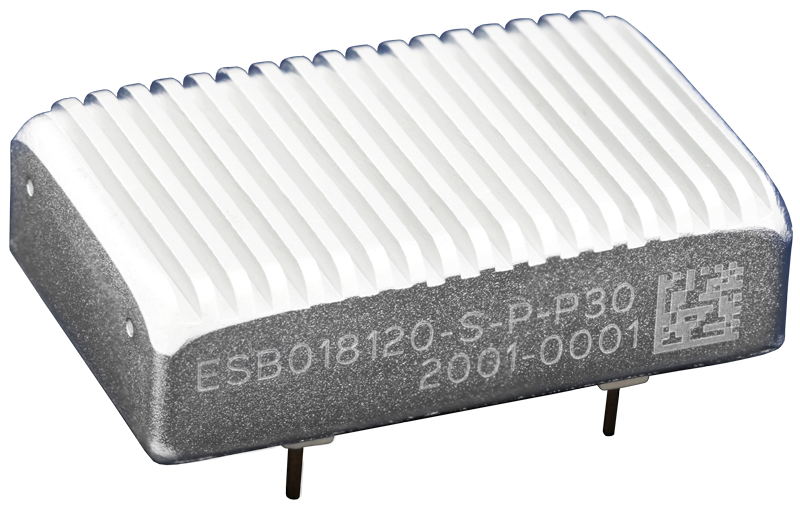

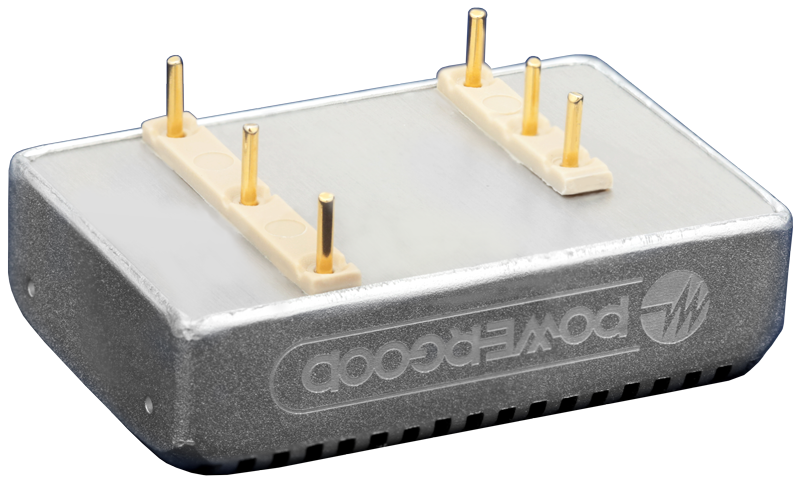

ESB Series - up to 30W

＊Built-in PI filter / EMC filter
＊Wide range operating temperature
＊Single / Dual Outputs
＊+70˚C without derating
＊UVLO / OCP / OVP / OTP

Add to Inquiry

Feature

Related Documents

High Ffficiency up to 91%
2:1 / 4:1 Ultra-Wide input range
Compact size – 1.6” x 1.0” x 0.4”＆ 1.6” x 1.0” x 0.5”

Standard pin out; Fully replaceable with 2”x1” standard case

Metal Case Six-Sided Continuous Shield
-40˚C to +70˚C operation without derating
Save up to 20% board space
Output current limit and short circuit protection
No life-span constrained Capacitor inside

MTBF≥ 2,195,000 hours @50˚C GB (BellCore TR-332)

PowerGood DC DC CONVERTER - Evolving Sirius - Bishop series converter is composed of Isolated, board-mountable, fixed switching frequency dc-dc converters that use synchronous rectification to achieve extremely high power conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments seen in many industrial and transportation applications.

PowerGood ESB DataSheet
